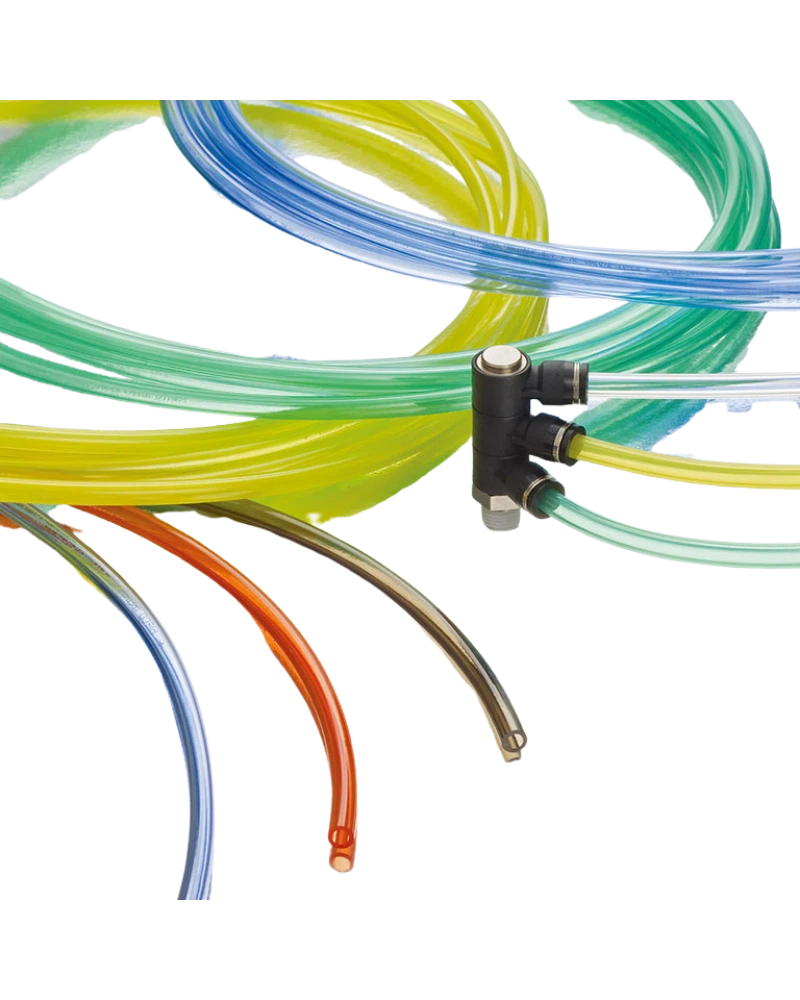

The Soft Polyurethane Tube is designed for flexible piping applications in confined spaces and areas with moving parts. Its soft, resilient construction allows it to conform to tight bends without kinking or damaging adjacent components, making it ideal for routing through equipment enclosures, machinery joints, or dynamic assemblies where traditional rigid tubing would fail.
Constructed from ether-based polyurethane, this tubing offers excellent water resistance and is specifically engineered to withstand exposure to water. The material provides superior flexibility and can be bent with a small radius without compromising structural integrity, ensuring reliable performance in both static and dynamic environments.
The tube features cut marks printed at approximately 500 mm intervals as a guide for cutting. These markings are intended only as a reference and do not guarantee precise accuracy. Users should exercise caution when making cuts and verify alignment with their specific application requirements.
This tubing is rated for use with air and water under specific conditions. The maximum operating pressure at 65% relative humidity and 20°C is 0.7MPa, while the maximum vacuum it can handle is -100kPa. For air applications, the operating temperature range is from -20°C to 60°C (no freezing), and for water use, it ranges from -15°C to 60°C (no freezing).
Available in five standard sizes and six clear colors, this tubing provides flexibility in design and application. The color options are all clear, allowing visibility of internal flow or system components without interference.
The tube is designed for direct integration into piping systems where space constraints and movement are key considerations. It can be routed along equipment surfaces or through moving parts with minimal reaction force due to its softness, reducing stress on connected components during operation.
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional *1) |
| Max. operating pressure (65%RH at 20ºC) | 0.7MPa *2 |
| Max. vacuum | -100kPa |
| Operating temperature range | Air: -20 to 60ºC (No freezing)/ Water: -15 to 60ºC (No freezing) |
| Available options | Soft polyurethane tubing suitable for piping in confined spaces and moving parts. Ether-based polyurethane tubing with excellent water resistance. Available in 6 clear colors and 5 sizes |
| Material | Made of ether-based polyurethane with excellent water resistance, allowing use with water |
